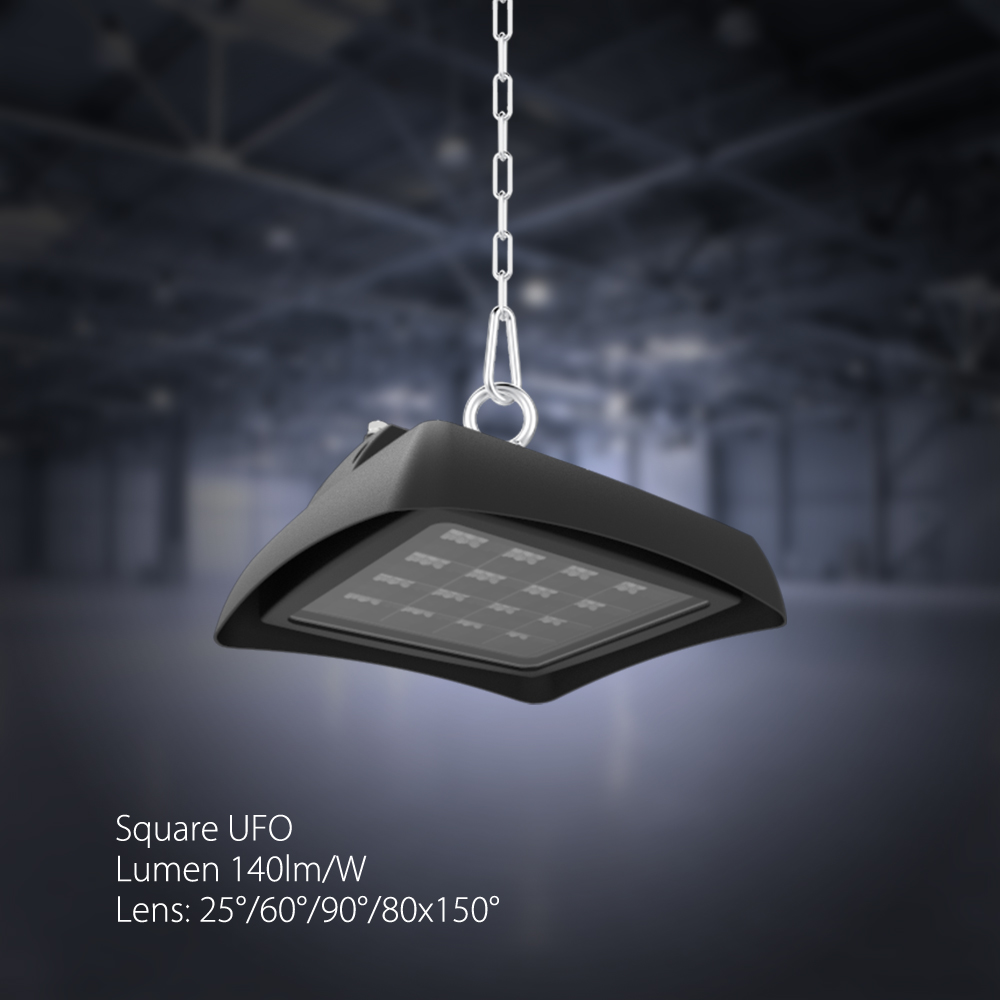

Square UFO Hi-bay Light 200W

Square UFO Hi-bay Light 200W
Send Order Request

Share:

Features:

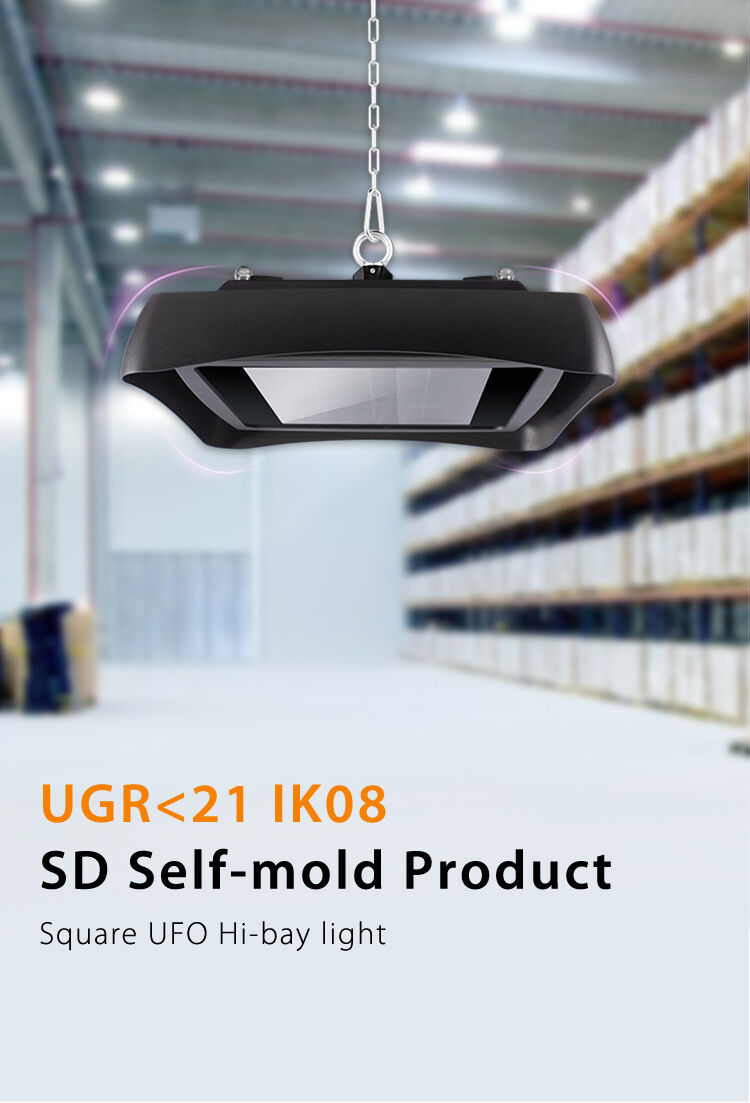

▪UGR<21, 140-150lm/W for fixture.

▪Square unique  patent design.

▪SU304 screw, ADC12 aluminum alloy.

▪30°/60°/90°/80x150° lens available

▪SMD2835 /3030 chips. ▪PHILIPS/MW/LIFUD driver.

▪High Power Factor >0.95, Low THD Driver.

▪Excellent Optics design, greatly improve the light utilization and evenness.

▪0-10V Dimmable optional.

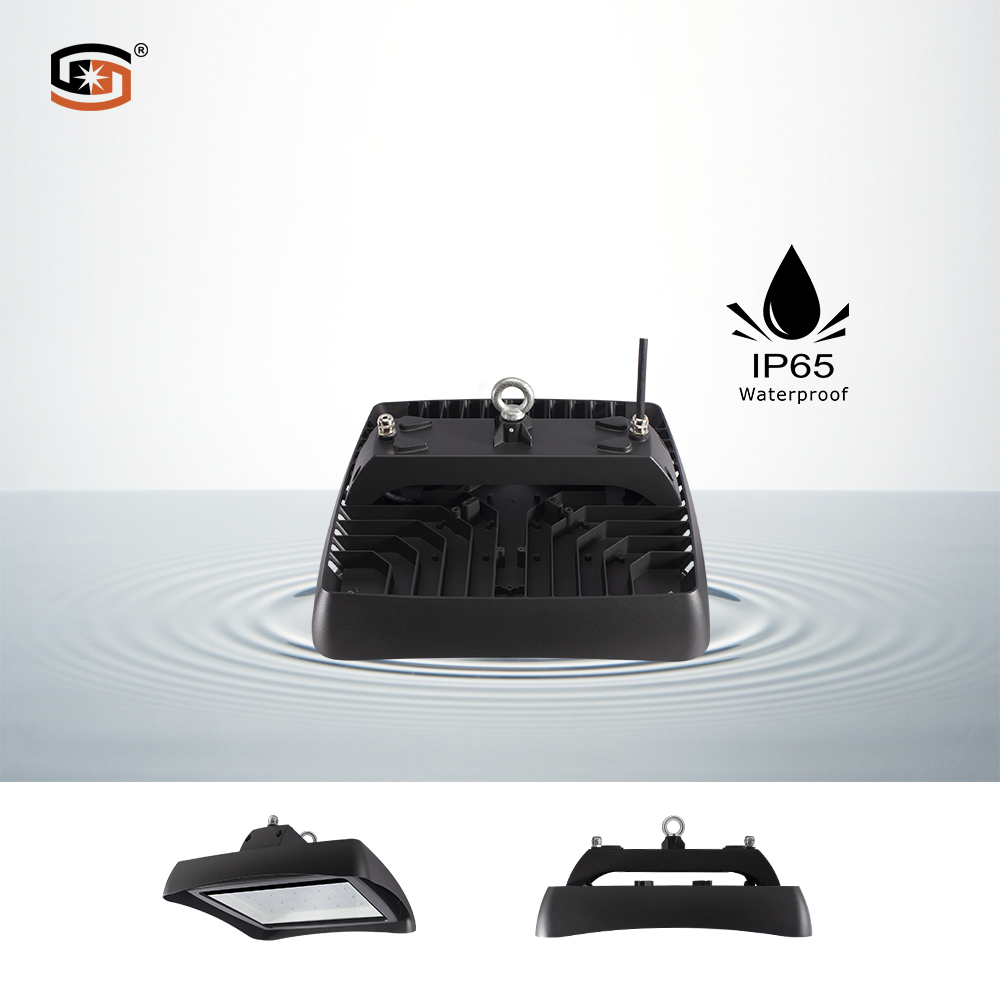

▪Dust-proof and waterproof, IP65.

▪5 years Warranty.



Power
200W
240W
300W
Luminous Flux
26000LM
312000LM
39000LM
LED Qty
200
240
300
Size
407x407x152mm
Light Source
SMD2835, SMD3030
Light Efficacy
130-140lm/W
Color
Black
Cover
Aluminum + PC
Certification
CE EMC TUV UL FCC
Operation Temp
-40°C to + 45°C
CCT
3000K WW/ 4000K NW/ 6500K CW
CRI
80
80
90
Voltage



Driver
AC100-277V/AC200-240V
Beam Angle

 30º  / 60º  / 90º / 80x150º

Installs

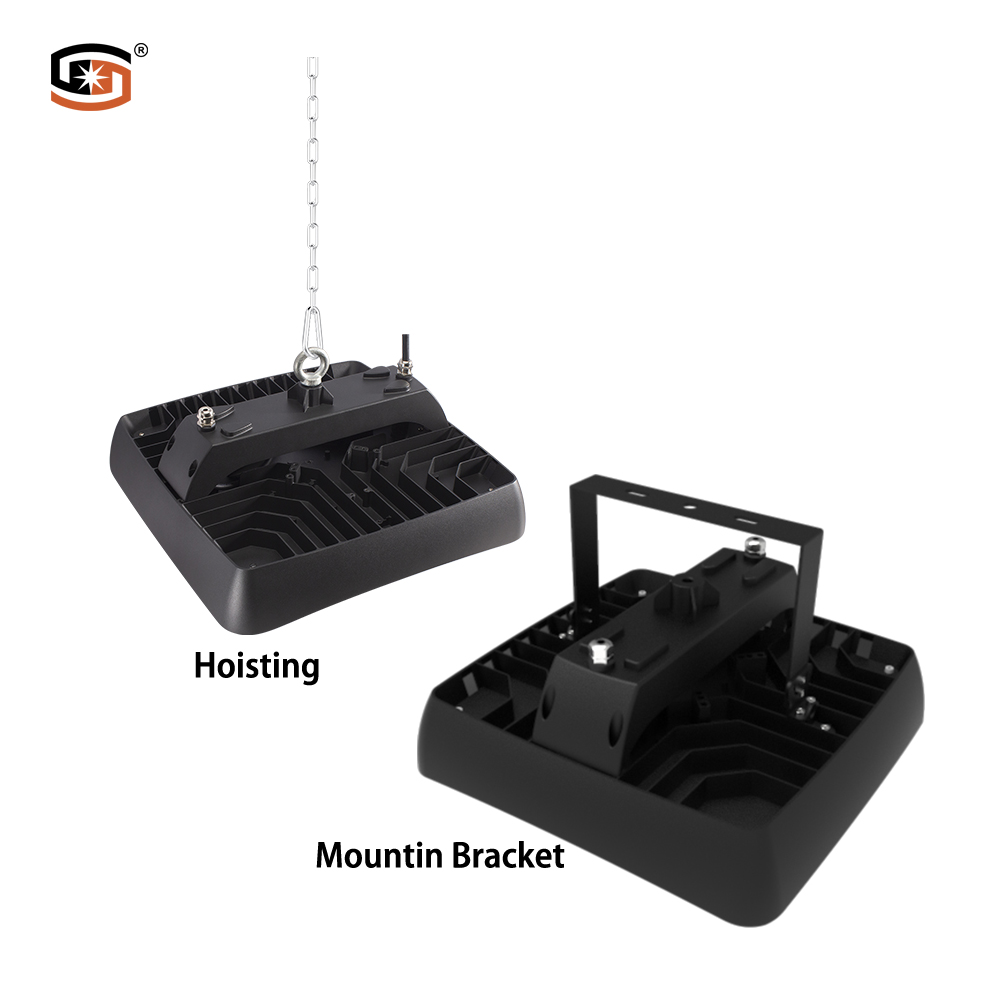

1. Hook Hanging  2. Chain Hanging  3. Pole Hanging 4. 4.bracket mounting

Waterproof IPXX
IP65
PF
>0.95
>0.95>0.95
